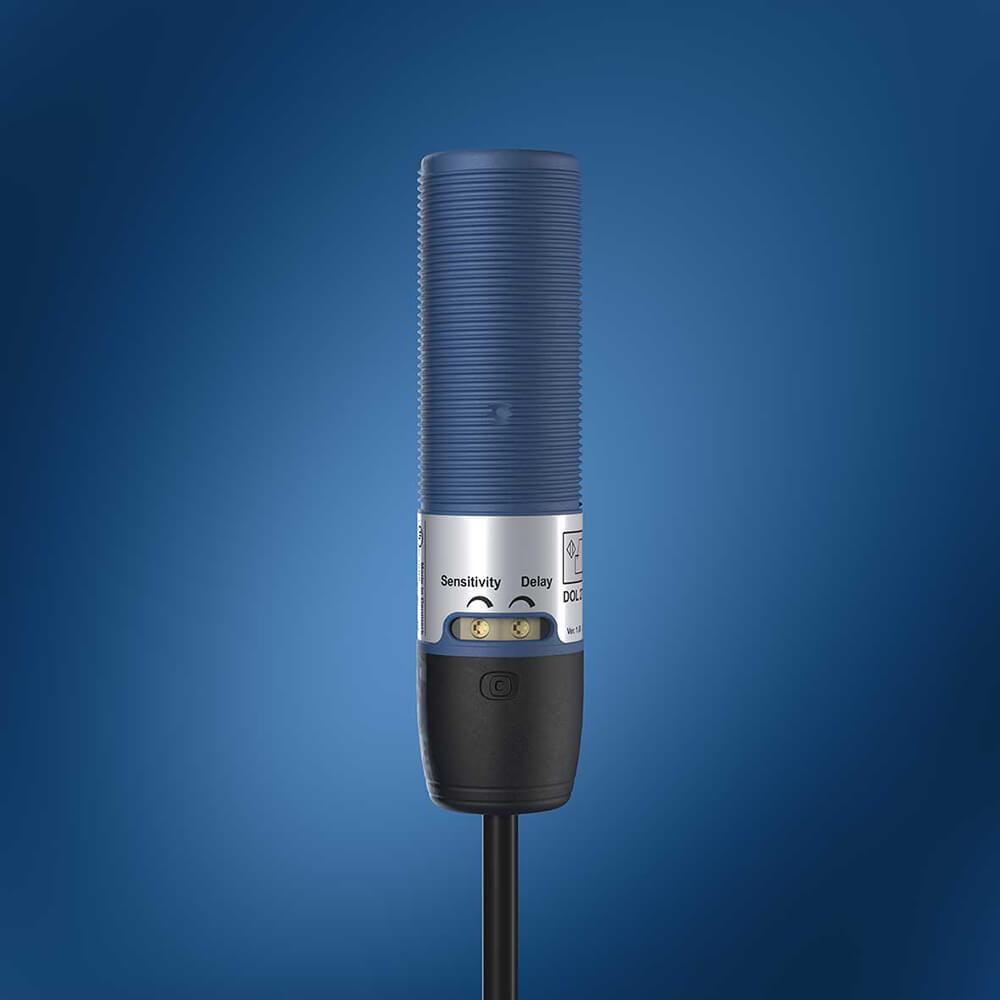

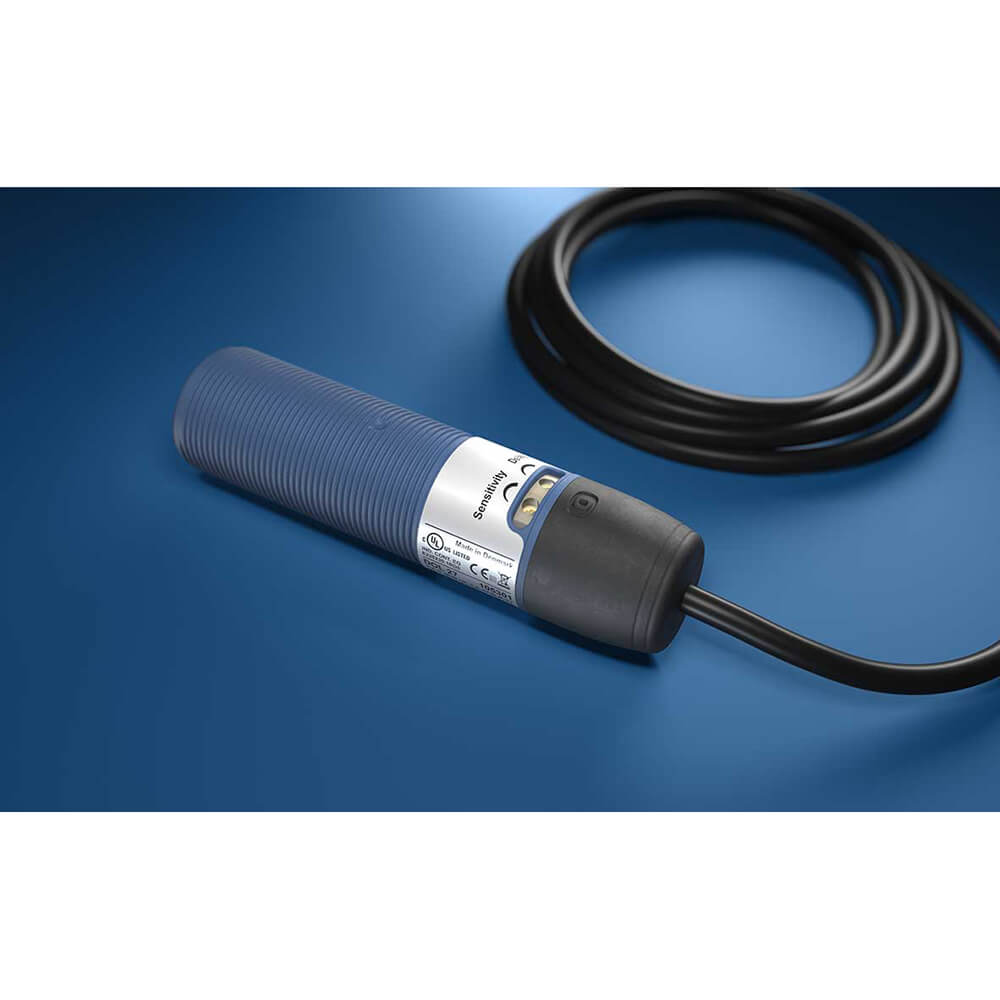

DOL 27 and iDOL 27 Capacitive Proximity Sensor

DOL 27 and iDOL 27 is a 30 mm capacitive/proximity sensor designed for detecting loose and solid materials. The sensors have highly unique functionalities for the agricultural and industrial industry. LED lights indicate status of the sensors.

No more burned off sensors due to installation mistakes

The DOL 27 and iDOL 27 capacitive/proximity sensors are immune to EMI, short circuits, and any overload which prevents sensors from burning off due to installation mistakes.

The sensors come with IP69k and NEMA 1/3/4/6/12/13 environment protection.

Very low power consumption in off state

The sensors have very low power consumption in off state, enabling the possibility for sensors working in parallel on the same contactor. This gives the sensors a unique possibility for controlling cross auger systems.

Different versions for different needs

DOL 27 and iDOL 27 are available in SCR, PNP, and NPN output versions. The sensors are suitable together with contactors, relays, PLC’s, and similar within the agricultural and industrial sectors.

• SCR output versions are available in 2-wire versions

• PNP and NPN output versions are available in 4-wire versions

Easily adjusted

The ON and/or OFF delay, MaxRunTimer, Make / Break contact, and sensitivity of the sensor can be fixed or adjusted using a trimmer or the SmartAdjust App to suit different motor control units.

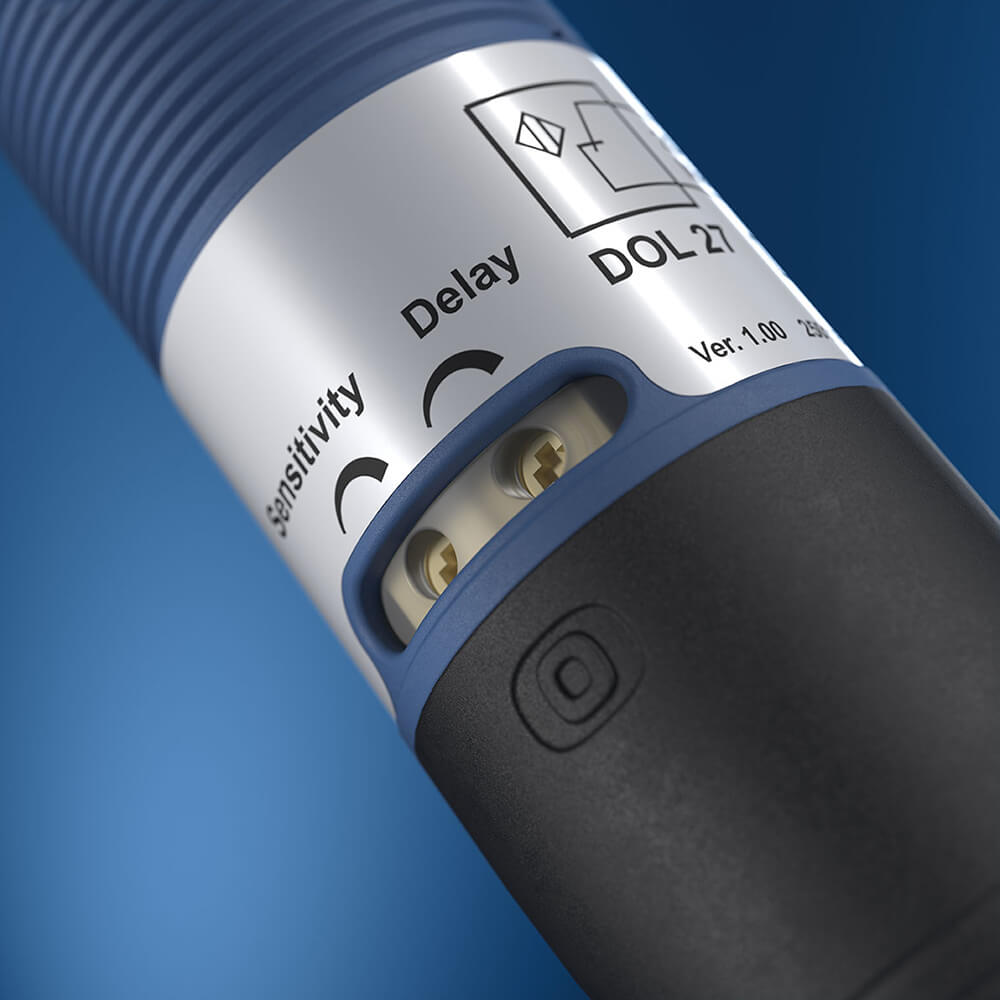

DOL 27 has easy trimmer adjustment on a single turn 240° trimmer with linear or non-linear scale.

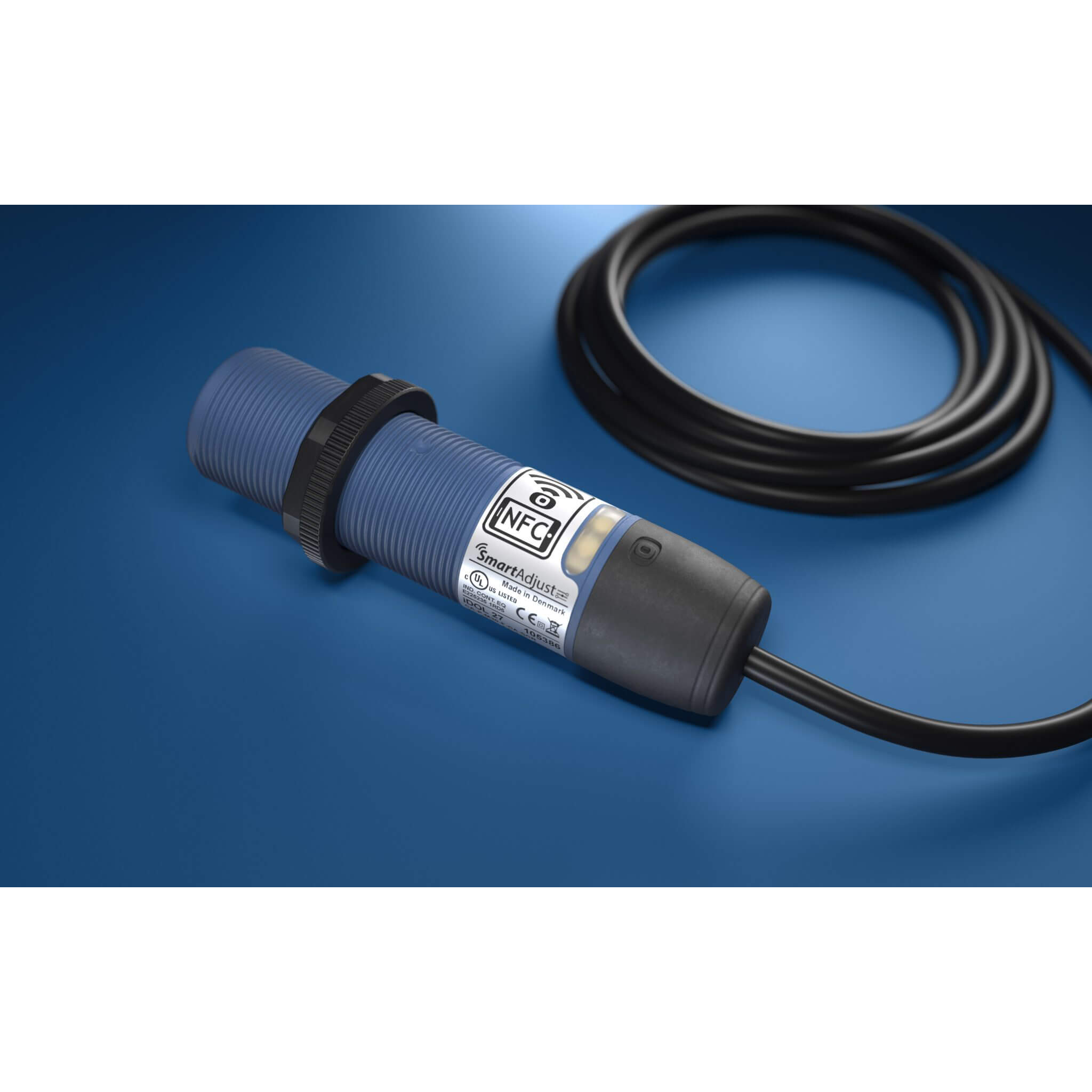

The iDOL 27 has easy adjustment by using the SmartAdjust App.

For all iDOL products, download the programming SmartAdjust App from Google App Store. Simply by searching for SmartAdjust or scan the QR code on the product.

Easily mounted

As all our 30mm sensors, DOL 27 and iDOL 27 can be easily mounted from the outside of a silo by using the gland we made for mounting. All you must do is mount the glad on the outside surface of the silo and mount the sensor to it. For silos made of metal or thick material, you will have to drill a small hole in it for the sensor to work.

Benefits

• Hardened design for harsh environment

• Immune to EMI, short circuits, and any overload

• Low power consumption in off state

• SCR, PNP or NPN output for different needs

• Threaded or smooth surface
