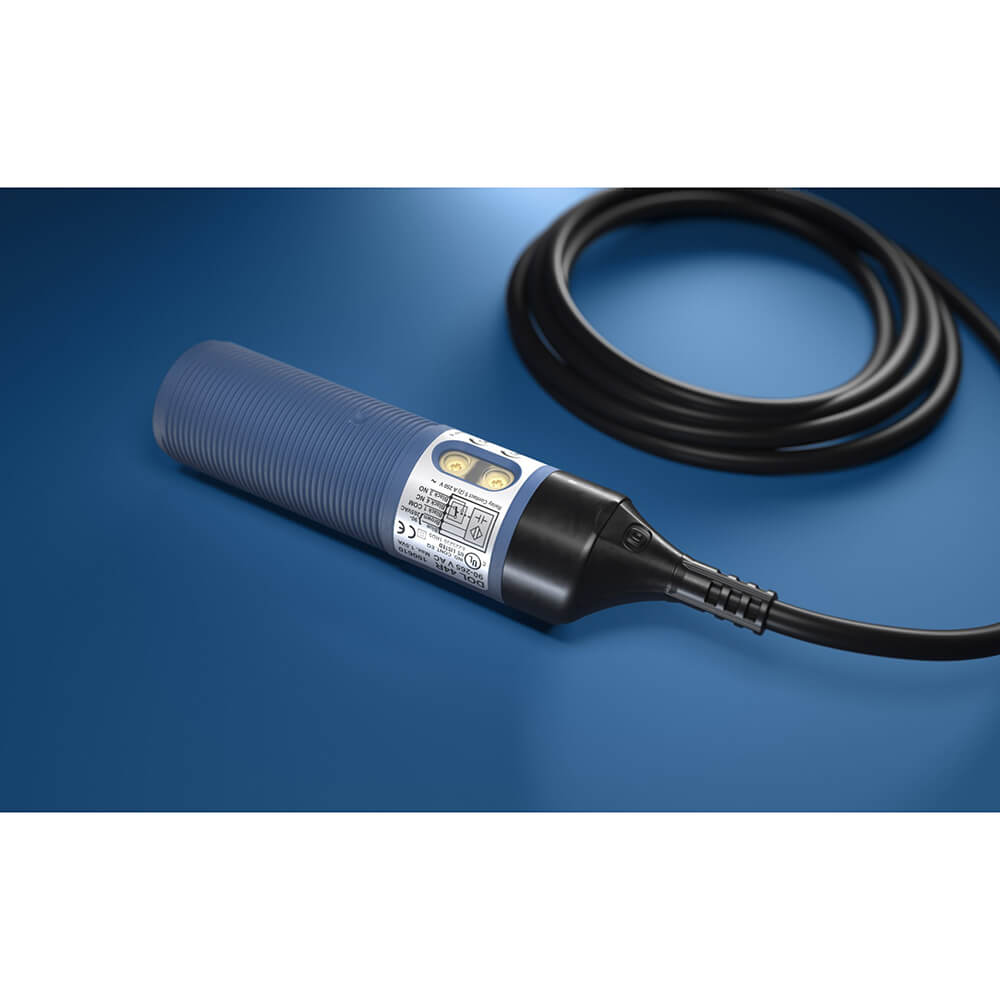

DOL 44 and iDOL 44 Capacitive Proximity Sensor

DOL 44 and iDOL 44 are 30 mm capacitive sensors for detection of feed, grain, and solids with relay output including switch function. The sensors are applicable for level control in silos and containers. Along with controlling the filling and emptying process.

Different Variants for Different Needs

DOL 44R is available in a multitude of versions. Such as the DOL 44RH with integrated heater for cold and/or high humidity applications avoiding condensation. DOL 44RT for detection of feed in tubes, and DOL 44R-33 with conical 30/32 mm enclosure.

Easy to Operate

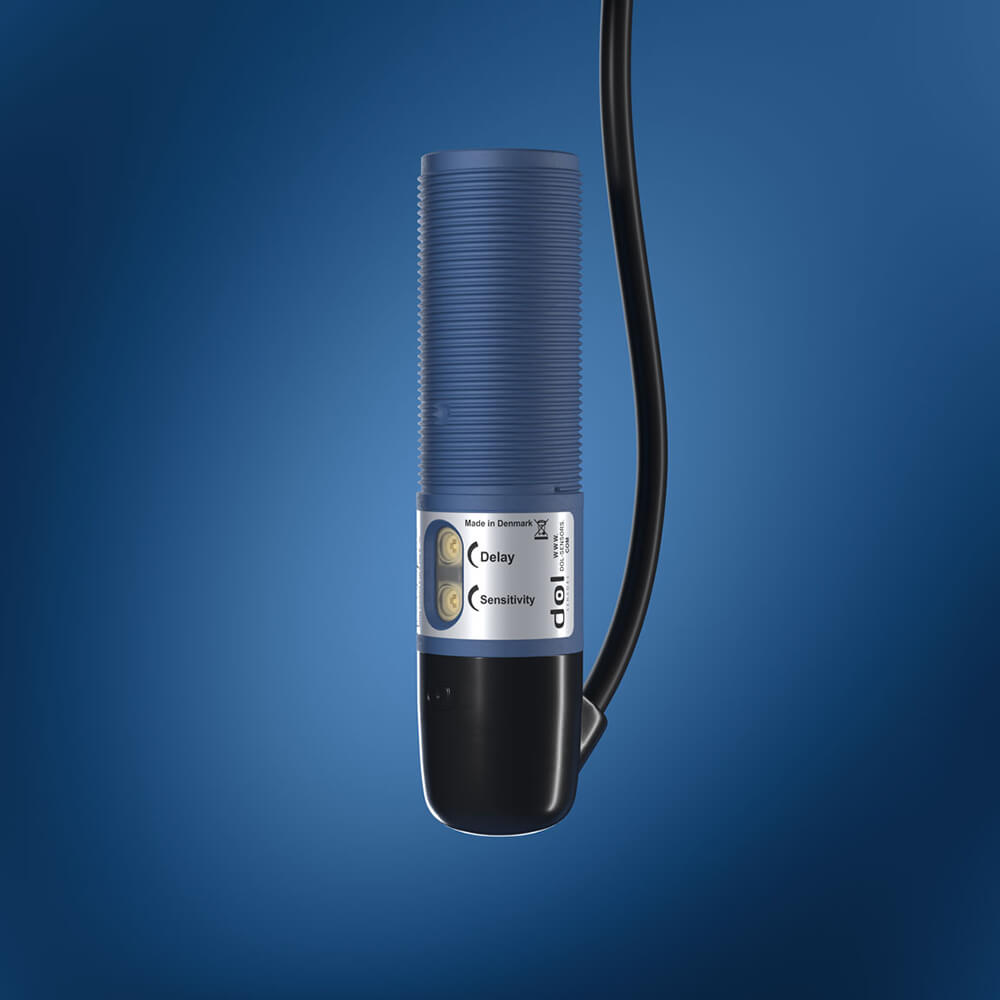

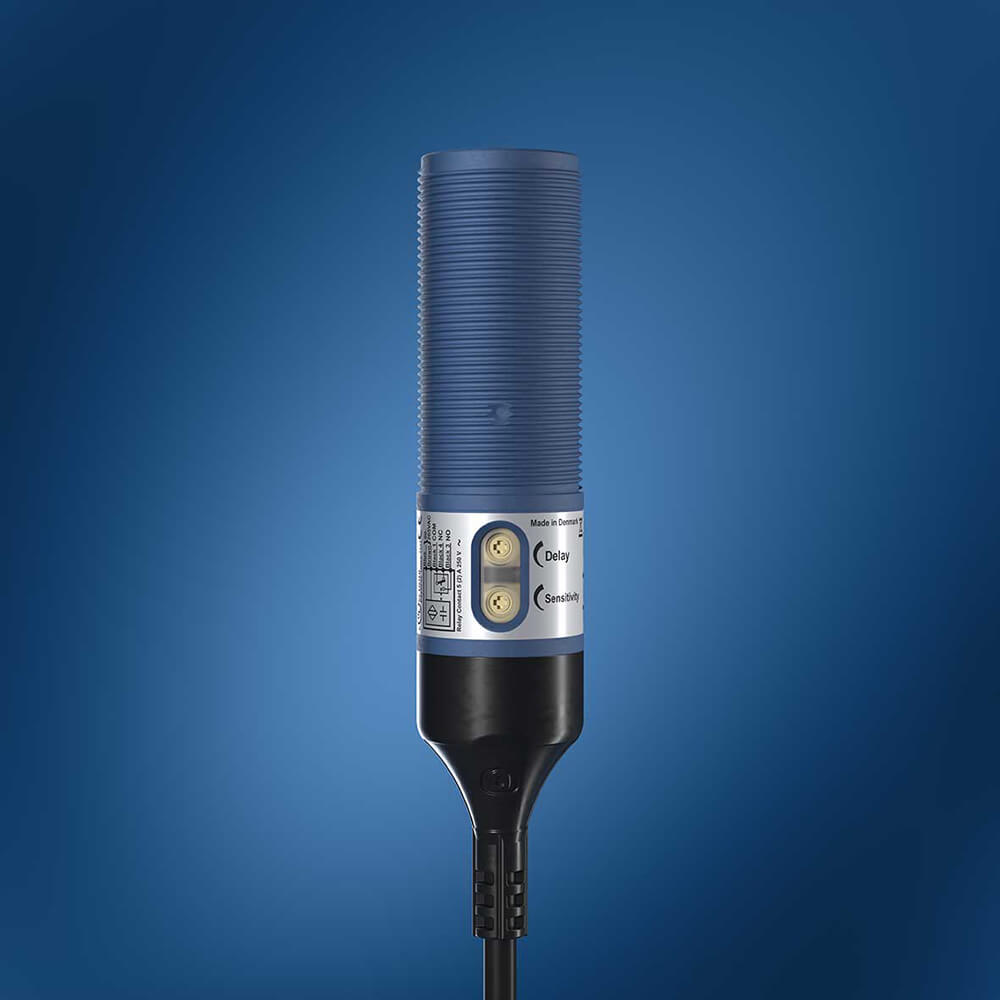

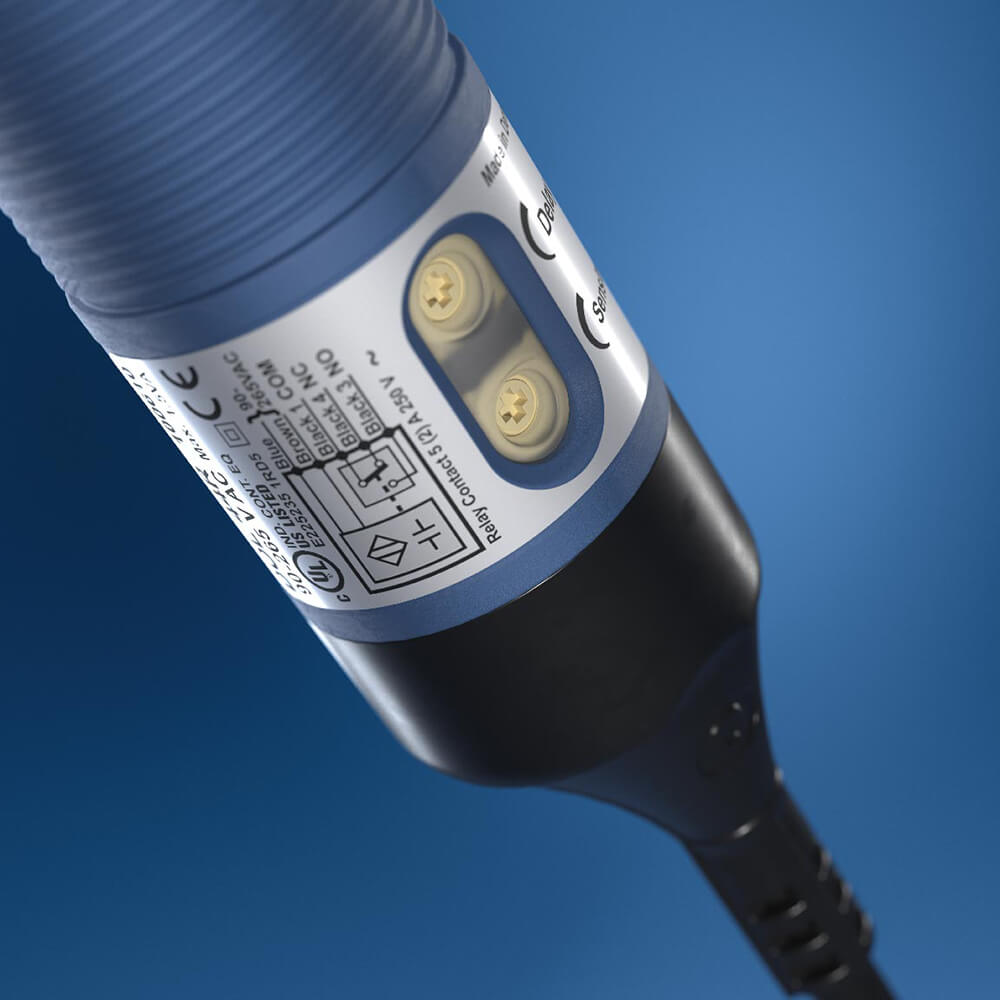

The sensors have robust functionality and are easy to operate. Settings are easily changed via two trimmers using a small screwdriver.

A red LED light clearly indicates the current status of the relay sensor.

Robust Functionality

DOL 44 and iDOL 44 have a high immunity to noise from electric communication (e.g. mobile phones) and transients (e.g. from motors and contactors). The IP69K protection class offers the highest protection against water and other liquids, e.g. during cleaning of livestock houses.

DOL 44 and iDOL 44 have full temperature compensation, and the sensor is very robust in regards to washing and EMC protection.

The sensor can, therefore, be used in environments with frequency converters.

The Future of Feed Sensors

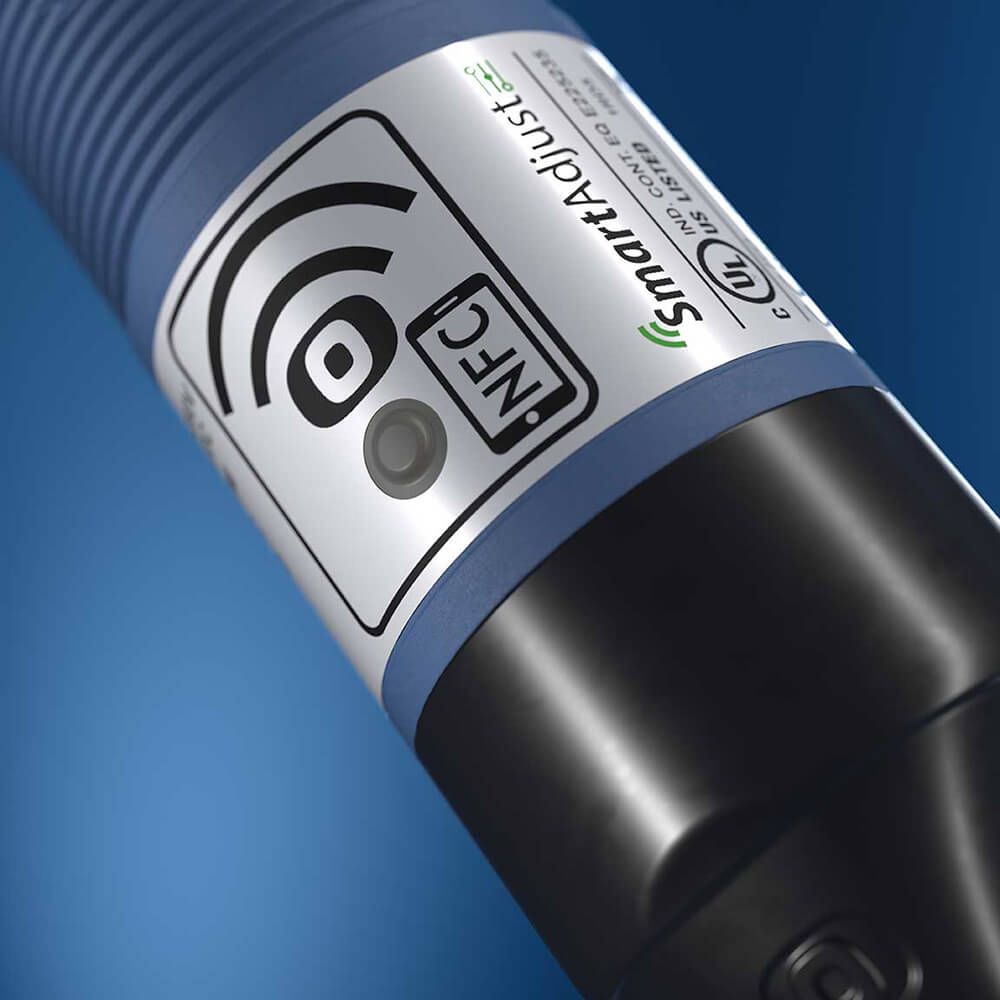

The iDOL 44 is the future of feed sensors. Based upon the DOL 44, the iDOL 44 features setup, adjustment of parameters, and settings through a wireless interface.

Matched with the iDOL companion app, SmartAdjust on your smartphone, the iDOL 44 is both easier to operate and more flexible than any other capacitive feed sensor.

The SmartAdjust app allows for more parameters to be available for the user, compared to a traditional sensor with two trimmers operated by a screwdriver. The result is a more flexible sensor, which can be adapted to the individual need of the user.

At the same time, the iDOL 44 sensor is also much easier to operate and understand. Since the setup of parameters is done with a user-friendly interface, which is easy to understand.

For all iDOL products, download the programming SmartAdjust App from Google App Store by simply searching for SmartAdjust or scan the QR code on the product.

Benefits

• Different variants for different needs

• Easy to operate

• Robust functionality

• Adjustable with smartphone or screw driver
